PLC industrial tank polishing machine

 Tips:Click picture to enlarge

Product introduction:

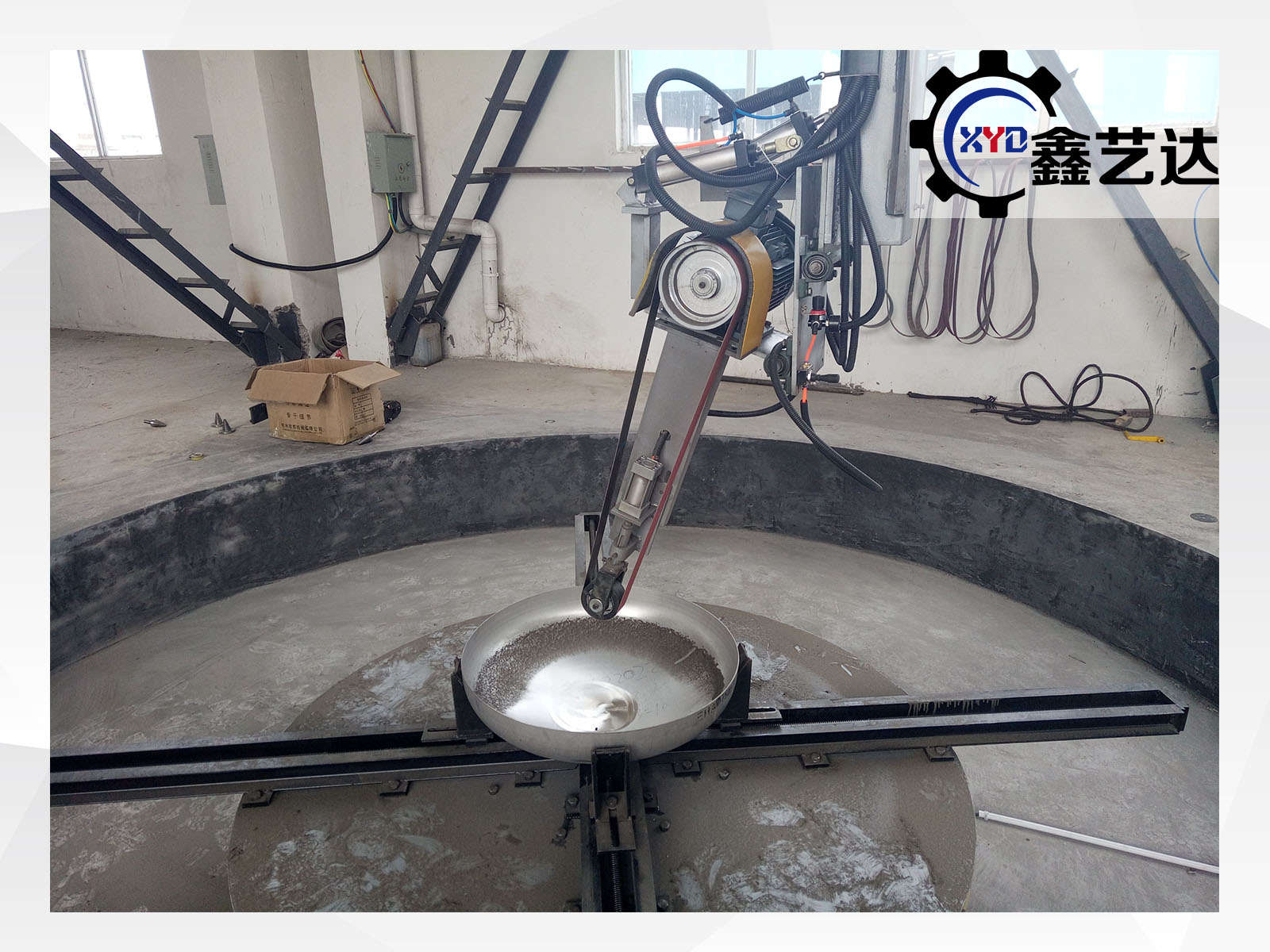

The equipment consists of a beam, a column, a base, a tank grinding head, a head grinding head, a tank rolling table, a head rolling table, a control cabinet and the like. Suitable for tank with diameter φ1000mm-5000mm, dished end with diameter φ1000mm-5000mm, inside and outside polishing. Tank vertical placement height 2500mm. Optional workpiece turntable load range: 1-20 tons

Product parameters:

1. Input total power is 12Kw

2. Equipment dimensions: 6000 × 800 (base embedded) × 5000 (L × W × H, in: mm)

3. Standard equipped with 5 tons of workpiece turntable, large beam up and down, small beam up and down, beam left and right, workpiece rotation, frequency control, a total of four inverters, beam effective stroke maximum 5000mm

4. The grinding head motor is 5.5kw. Grinding head, belt, thousand impeller, hemp wheel, cloth wheel are interchangeable

5. Thousand impeller specification: φ250mm × 50mm, abrasive belt specification: 2540mm × 50mm

6. Machining accuracy: surface roughness Ra≤0.4μm

7. Production efficiency: 10 m2 / h
