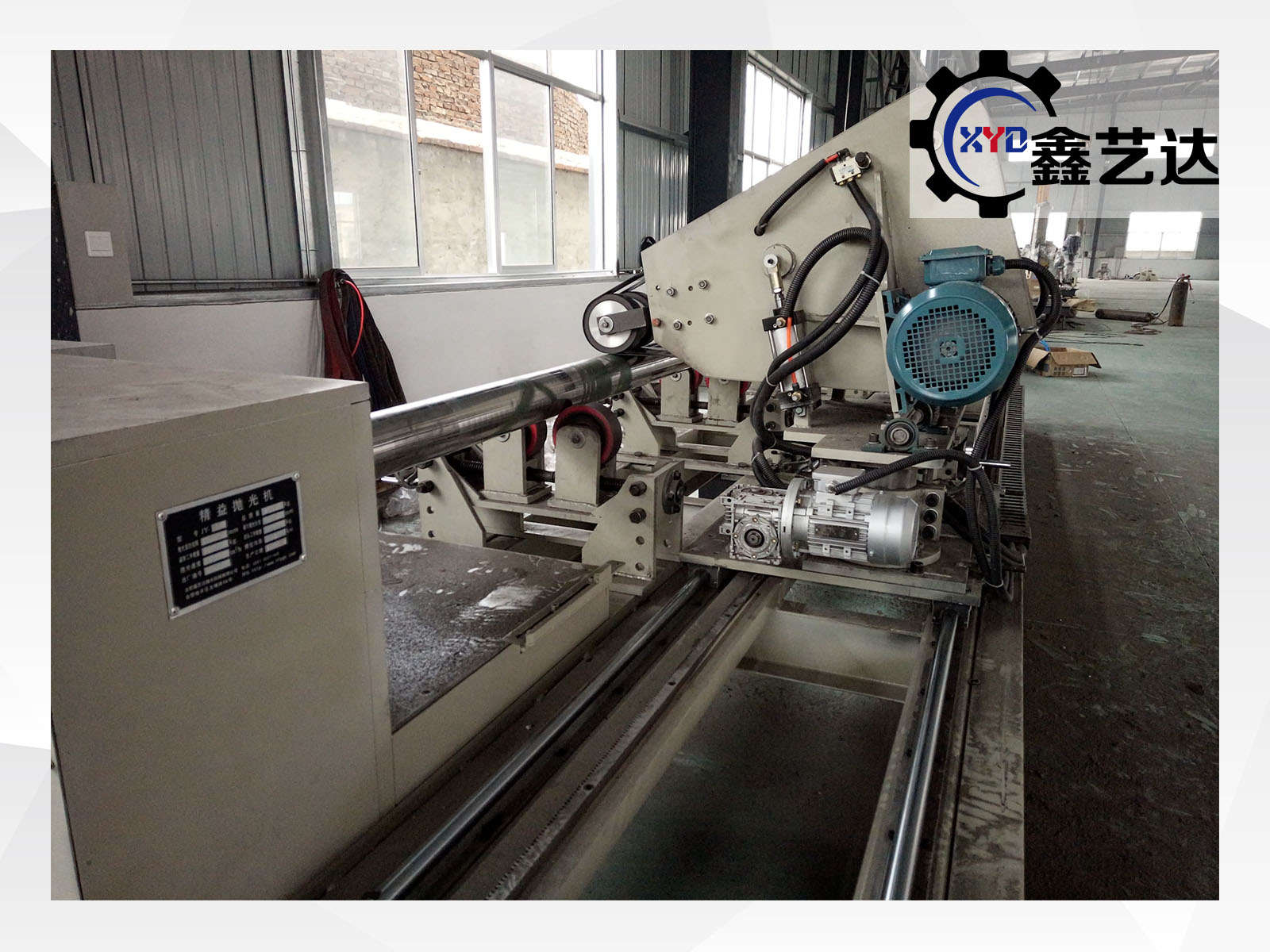

Outer tube polishing and grinding machine

 Tips:Click picture to enlarge


Product introduction:

This model suitable for diameter from 40mm to 400mm tube polishing.with two grinding head,polishing material can exchange.Tube fix on roller and grinding head move from oneside to other side.grinding head with cylinder.the pressure can adjust.it can meet different workpieces.

The main motor of the grinding head is 7.5kw variable frequency motor, the speed reducer is 4kw. The maximum travel of the grinding head is 6m and the support length is 8m. After the grinding head turned back, the inner tube can be polished in length of 16m.


Product features:

1. The round tube polishing machine has high efficiency, good finish, and extensive and durable abrasive tools.

2. The machine has simple and convenient operation, stable product performance and low noise, etc., which are well received by users. The product is designed to meet the needs of different industries using optional cooling systems and dust collection and dedusting systems. Users who reserve fan ports on this machine can also install dust removal fans by themselves.

3. The rotation of the guide wheel of the machine adopts the stepless speed regulation mode, which can better meet the grinding or polishing of workpieces of different diameters and different lengths. Because the guide wheel rotation of the machine adopts the stepless speed regulation mode, the workpiece is more efficient, the finish is better, and the abrasive consumables are widely and durable.

Product parameters:

The diameter of the round pipe is φ 100-800M, the length is 1000MM-12000MM, the weight is 5-10 tons, and the thickness is 30MM. Material: stainless steel and carbon steel, the diameter of the vacuum port reserved 100MM.
